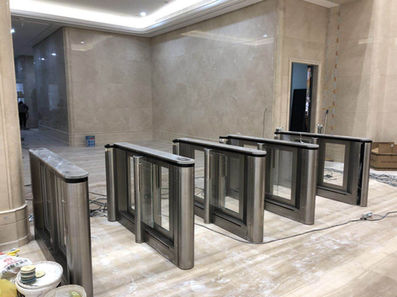

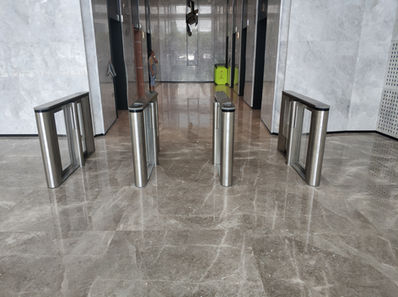

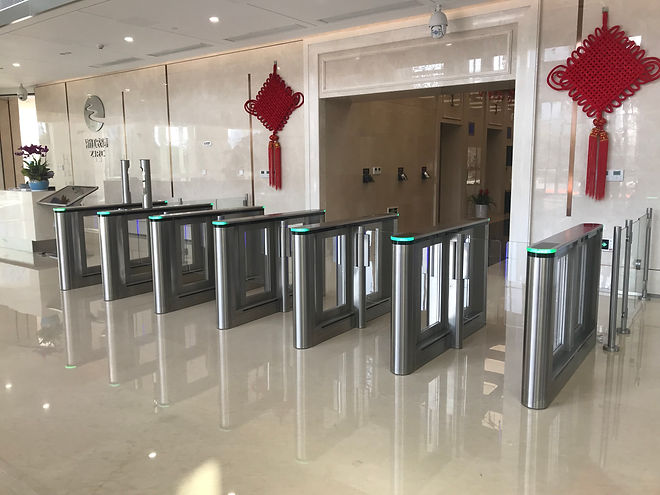

PG200 Paddle Leaf Speed Gate
The PG200 Paddle Leaf Speed Gate provides controlled, bi-directional pedestrian access for corporate buildings and commercial environments.
Featuring transparent PMMA obstacles, brushed stainless-steel cabinets and integrated access-control options, it combines a streamlined appearance with efficient pedestrian flow.
With standard 600 mm and 900 mm walkway options, configurable operating modes and throughput of 25–30 people per minute, depending on access control and user behaviour, the PG200 can be configured for a range of entrance requirements.
.jpg)
The PG200 combines controlled pedestrian access with configurable detection and operating options for commercial entrances with different security and passage requirements:
-
Efficient pedestrian flow: Throughput of approximately 25–30 people per minute, depending on access-control method and user behaviour.
-
Standard detection: Eight high-level detection sensors, with eight additional low-level sensors available as an option.
-
Standard passage widths: 600 mm and 900 mm options; other widths may be available on request.
-
Configurable operation: 12 adjustable operating parameters.
-
Integration options: Volt-free relay inputs and TCP/IP communication.
-
Emergency functions: Manual movement of arms during power loss and an input to drive them open during a fire alarm.
The PG200 combines controlled pedestrian access with efficient entrance operation. The sections below cover its security and safety features, key specifications, operating functions, applications and available technical information.
-
Bidirectional paddle-leaf operation.
-
Standard 10 mm PMMA obstacles, 895 mm high.
-
10 mm toughened-glass side walls.
-
Brushed stainless-steel cabinet.
-
Cabinet dimensions: 1,320 × 150 × 1,020 mm (L × W × H).
-
Standard 600 mm and 900 mm walkway widths.
-
Eight high-level detection sensors as standard; eight low-level sensors optional.
-
12 configurable operating parameters.
-
Volt-free relay inputs and TCP/IP communication.
-
Card-reader mounting brackets.
-
Optional obstacle heights up to 1,700 mm, subject to configuration.
-
MCBF of 5 million cycles with routine maintenance.
-
12-month warranty.
Planning Your Entrance?
Tell us about your building, walkway-width requirements and access-control system. Our team can help you assess the PG200 configuration for your project and provide technical information or a quotation.
Which access-control systems can be integrated?
The PG200 provides volt-free relay inputs and TCP/IP communication. The required access-control equipment and integration should be confirmed for each project.
The standard options are 600 mm and 900 mm. Other widths between 500 mm and 900 mm may be available on request.
Can the PG200 be customised?
Yes. The PG200 is available with multiple lane configurations, accessible lane options, custom finishes, and a variety of reader integration solutions.
