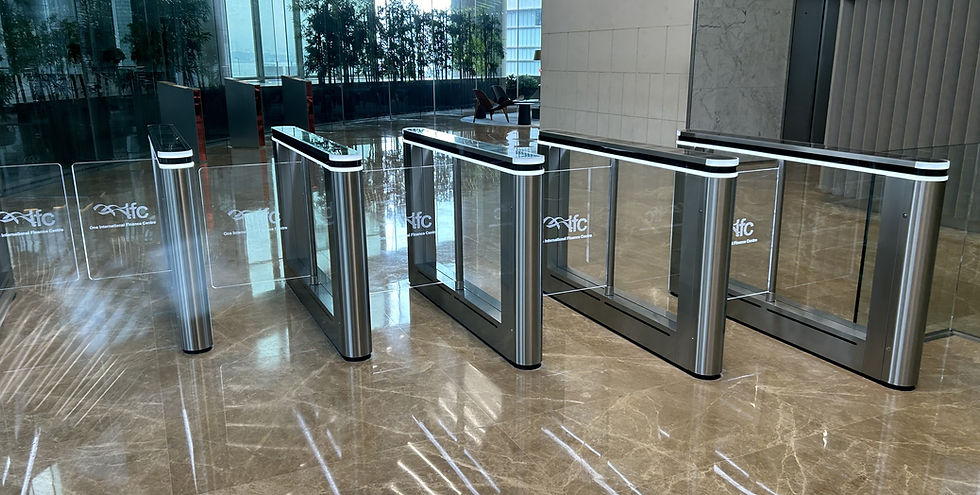

PG150 Paddle Leaf Speed Gate

The Evolve PG150 combines sophisticated styling, adjustable operating modes and flexible barrier options to deliver reliable pedestrian access control for modern commercial buildings.

The Evolve PG150 provides controlled, bidirectional pedestrian access with a sleek stainless-steel cabinet. Available with standard transparent PMMA arms or optional toughened-glass arms, it combines a professional architectural appearance with practical entrance management.

With configurable operating modes, adjustable opening and closing times, and 600 mm or 900 mm passage widths, the PG150 can be tailored to suit different pedestrian flows and security requirements. It supports compatible card, QR-code and facial-recognition access systems.

Designed for Reliable Pedestrian Access

The PG150 offers configurable operating modes, adjustable barrier timing and throughput of over 25 people per minute.

Request a Free Quote

Download Product Brochure

Why Choose The PG150

The PG150 offers configurable pedestrian access with a choice of passage widths and barrier materials, making it adaptable to different commercial entrance requirements:

Configurable detection: Eight pairs of sensors as standard, with 16 pairs available as an option.
Standard arm material: 10 mm PMMA arms, with optional 8 mm toughened-glass arms.
Standard passage widths: 600 mm and 900 mm.
Flexible operation: Nine customer-settable channel modes and adjustable opening and closing times.
Access-control interfaces: Supports card, QR-code and face-recognition access, with dry-contact and RS232/RS485 interfaces.

Understanding the PG150

The PG150 combines controlled pedestrian access with configurable operating modes and flexible barrier options. The sections below cover its security and safety features, key specifications, applications and available technical information.

P600 brushed-finish AISI 304 stainless-steel cabinet; custom finishes available on request.
10 mm transparent PMMA arms, optional 8 mm toughened-glass.
Standard arm height: 870 and 1,200 mm, bespoke arm heights from 870 to 1,800 mm high.
Standard passage-width: 600, and 900 mm, bespoke widths from 500 to 1200 mm.
Single or double arm configurations available.
16 standard IR safety and security detection sensors, 8 in the top row and 8 in the bottom row.
24 V DC motor and encoder-based door positioning.
Standard card-reader mounting brackets included; custom mounting options available on request.
12-month warranty extended 24 and 36-months extended warranties available on request.

The PG150 is designed for controlled pedestrian entrances in indoor commercial and professional environments, including:

Corporate offices and reception areas.
Commercial buildings and business parks.
Education facilities.
Healthcare environments.
Financial institutions.
Hotels and managed workplaces.

The passage width, sensor configuration and access-control interface should be selected to suit the entrance layout and project requirements.

The PG150 combines pedestrian-detection sensors with configurable barrier operation. Its specified power-off mode allows the barriers to be pushed freely when power is lost.

Pedestrian detection: Eight pairs of sensors as standard; 16 pairs optional.
Power-loss operation: Arms can be pushed freely when power is off, as specified.
Adjustable operation: Opening and closing times can be configured.
Alarm interface: Buzzer interface.
Installation and commissioning: Sensor operation and arm settings should be checked against the site's pedestrian-safety requirements.

he PG150 supports controlled pedestrian access through configurable operating modes and integration with compatible access-control systems. Its sensor arrangement helps monitor pedestrian movement through the lane.

Standard detection: Eight pairs of sensors, with 16 pairs available as an option.
Access-control integration: Supports compatible card, QR-code and face-recognition systems.
Configurable operation: Nine customer-settable channel modes.
System interfaces: Dry-contact, RS232 and RS485 interfaces.
Detection functions: Additional security and alarm functions depend on the supplied configuration.
